2.42kw 0.6M3/ Min Automatic Water Filling Machine SUS316 Drinking Water Bottled Machine

Name: 242kw 06M3 Min Automatic Water Filling Machine SUS316 Drinking Water Bottled Machine
Brand: Aquatrin
Price: 15000 USD

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Processing : Normal Pressure Filling

Material : SUS304/316

Keywords : water bottle filling production line

Packing material : Wood Packing

Application : Beverage

Warranty : 1 Year

Contact Now

Full Automatic Water Filling Machine / Spring Drinking Water Bottled Washing Filling Capping Machine

1. This machine is mainly used for airless drinks such as mineral water and purified water.
2. The machine design shortens the contact time of beverage materials with the outside world, increases sanitary conditions, and is comprehensive and economical.
3. The bottle filling and capping machine uses an air supply device, and the clamp is hung on the bottleneck. The feeding speed is fast and it will not deform.
4. The machine adopts the bottleneck keeping transmission technology to realize automatic washing, filling and capping.
5. The parts in contact with the beverage will use high-quality stainless steel SUS 304.

Detailed Images

2.42kw 0.6M3/ Min Automatic Water Filling Machine SUS316 Drinking Water Bottled Machine

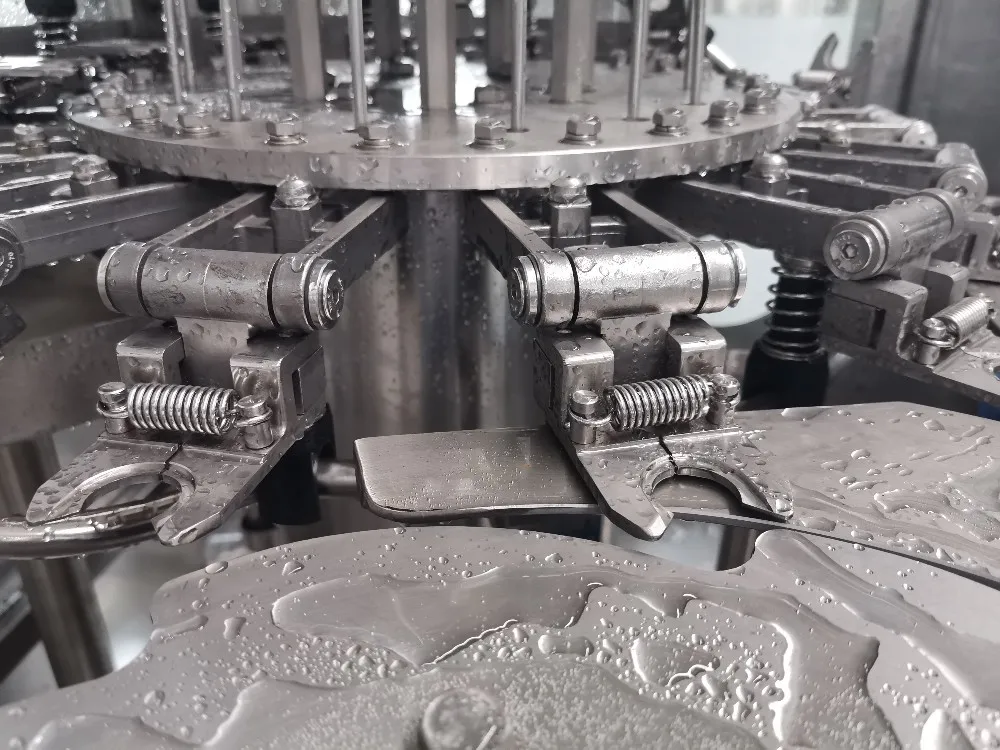

Washing Part

Name: washing system
Brand: Mingstar
Original:China
Rinsing gripper dial, separating water dial, water trough.
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second contamination.

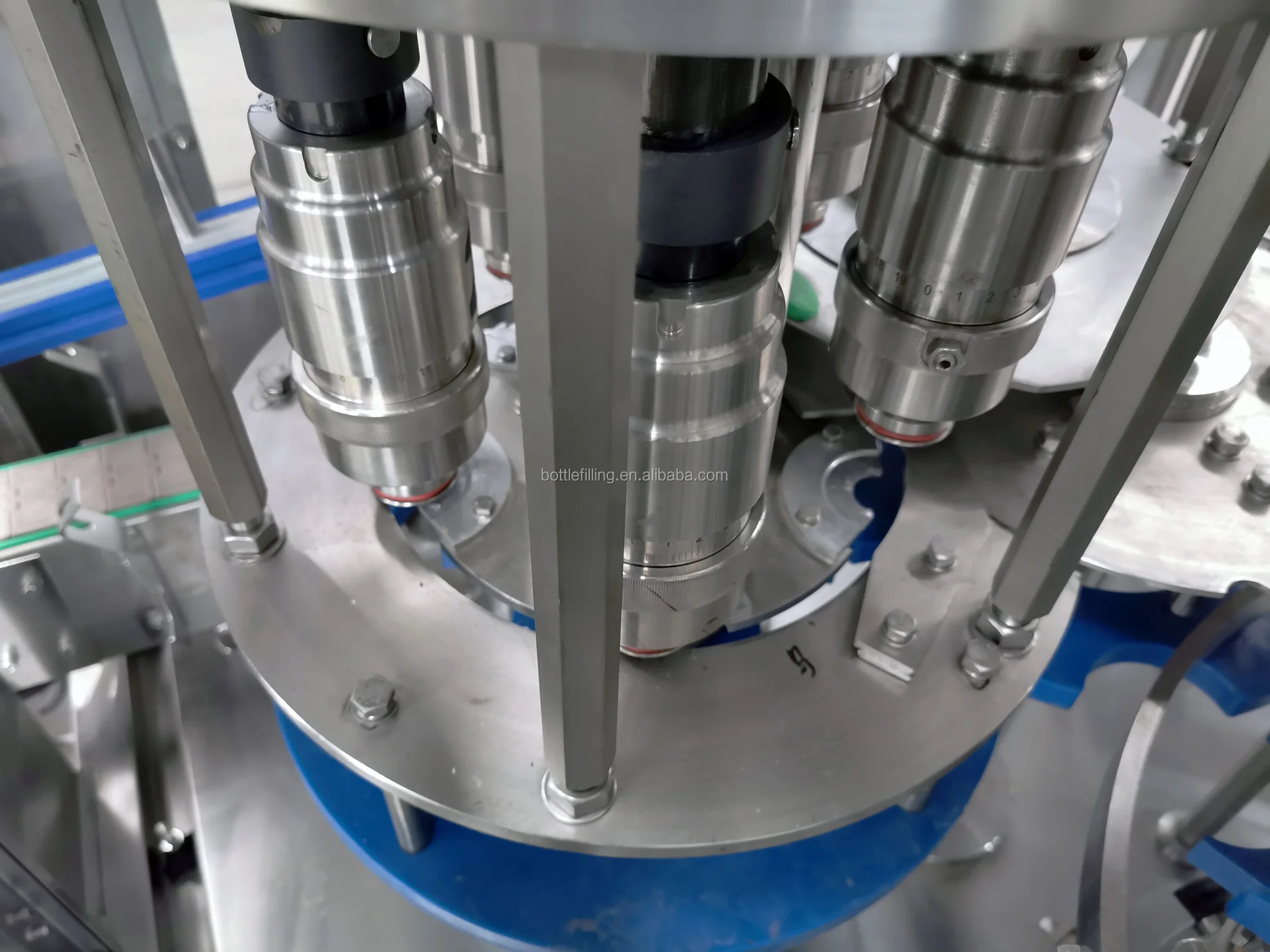

Filling Part

Name: filling system
Brand: Mingstar
Original: China
Components: Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

Capping Part

Name: capping system

Brand: Mingstar

Original: China

Material: SUS304

Screwing capper, cap sorter, falling cap guide.
Capping head have itself scale. Easier adjust and count.Capping effect is stable and reliable ,Defective rate ≤0.2%

Product Paramenters

Model	CGF14-12-5
Amoust of working position	Rinsing 14, filling 12, capping 5
Production Speed	5000bottles per hour(500ml)
Pressure of air source	0.3~0.7Mpa
Air consumption	0.2~0.6M3/min
Pressure of rinse water	0.06~0.2Mpa
Consumption of rinsing water	1t/hour
Main motor power	2.42kw
Dimension	236017702700(LWH)
Weight	2500kg

Details Images

2.42kw 0.6M3/ Min Automatic Water Filling Machine SUS316 Drinking Water Bottled Machine
