Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine

Name: Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Brand: Aquatrin
Price: 2000 USD

Best Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine wholesale

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Name : 5gallon filling machine

Core Components : Motor, Pressure vessel, Pump, PLC

Certificate : CE & ISO9001

Control : PLC touch screewn control

Dimension(L*W*H) : 6600*3500*2170mm

Package type : 5 gallon jar / barrel

Contact Now

Main Features.
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products wite brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine

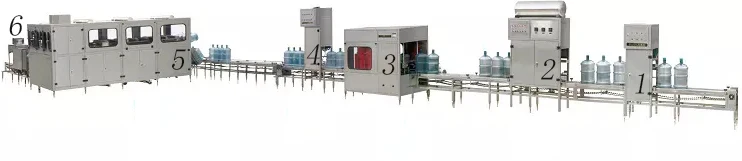

Product process

1/Auto Bottle Uploader 4/ Inside Brusher
2/ Decapping Machine 5/Rinsing Filling Capping Machine
3/ Outside Brusher 6/ Light Inspector+Cap Seal Shrink Machine

Machine Parameter

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Number of filling heads	1	2	3	4	8	12	16
Filling capacity	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Production capacity (b/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure (Mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6

Details Images

Water treatment system

Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone generator, finished water tank

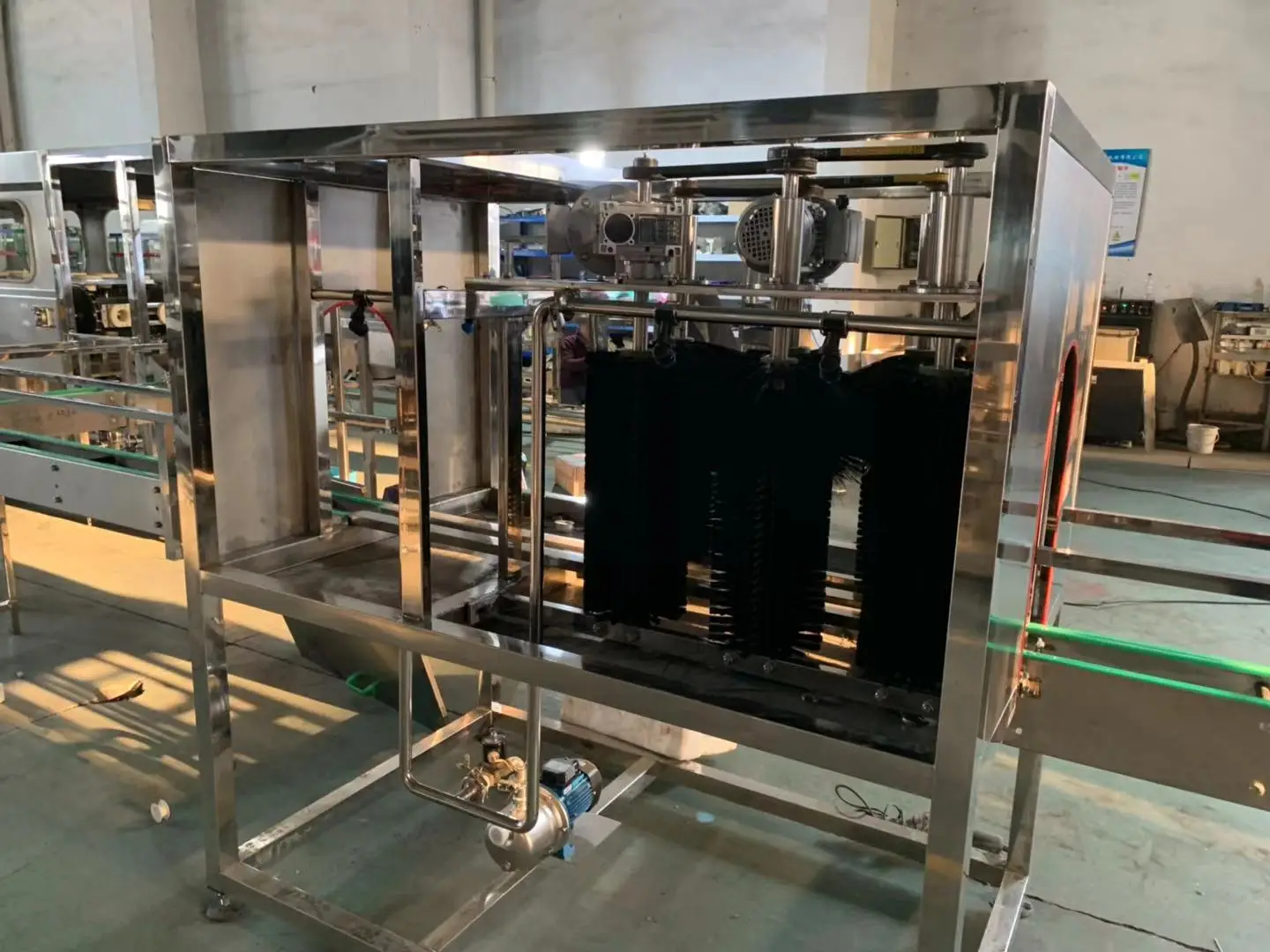

Barrel outside washing machine

Automatic barrel loading machine

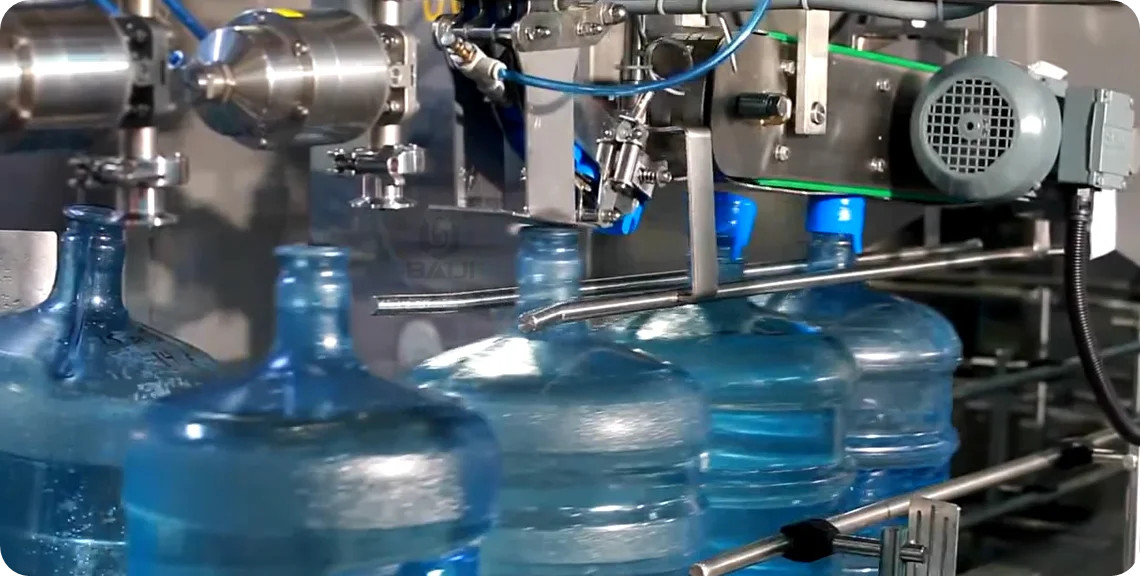

Filling part

Capping part

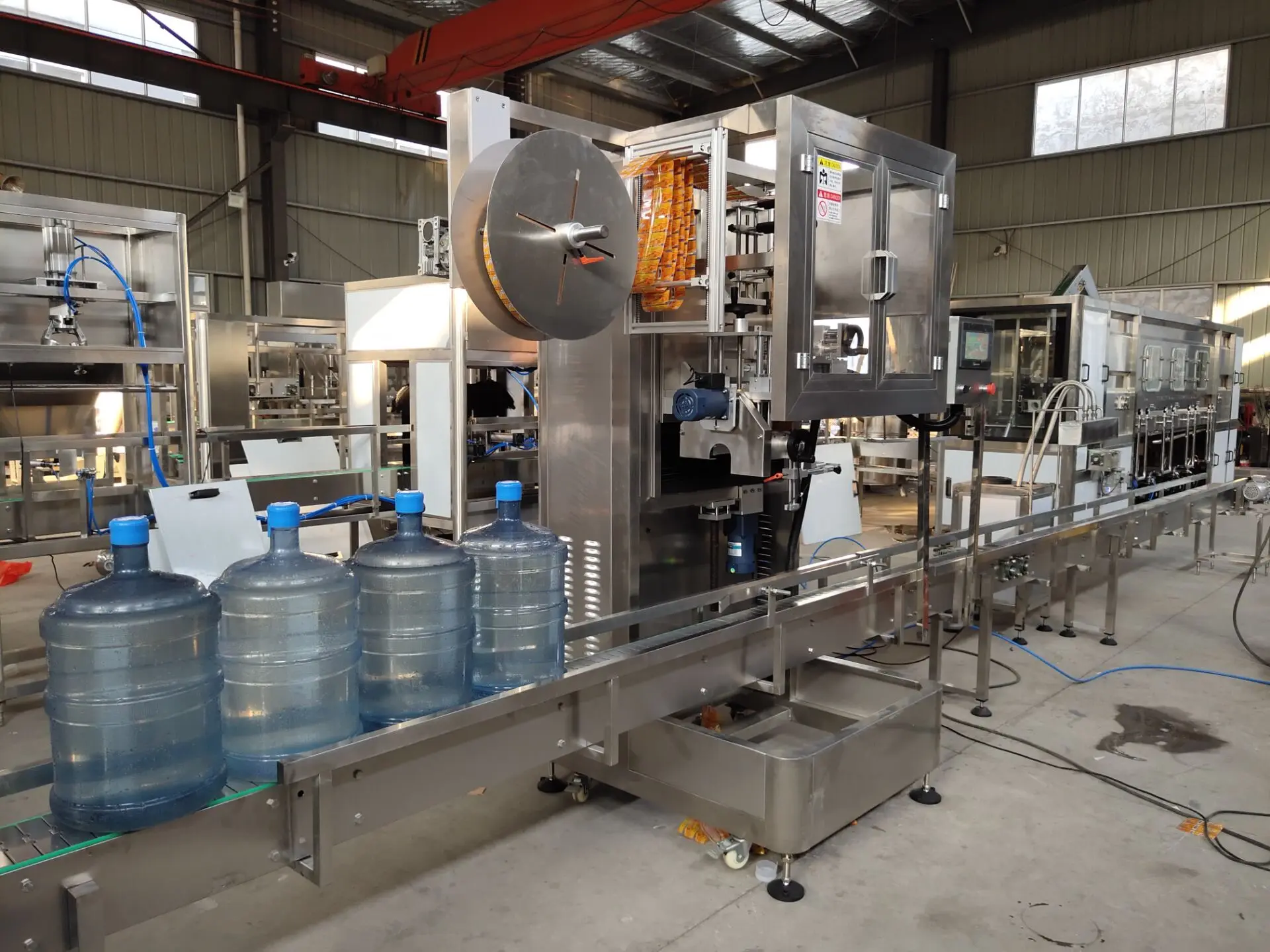

Shrink sleeve labeling machine

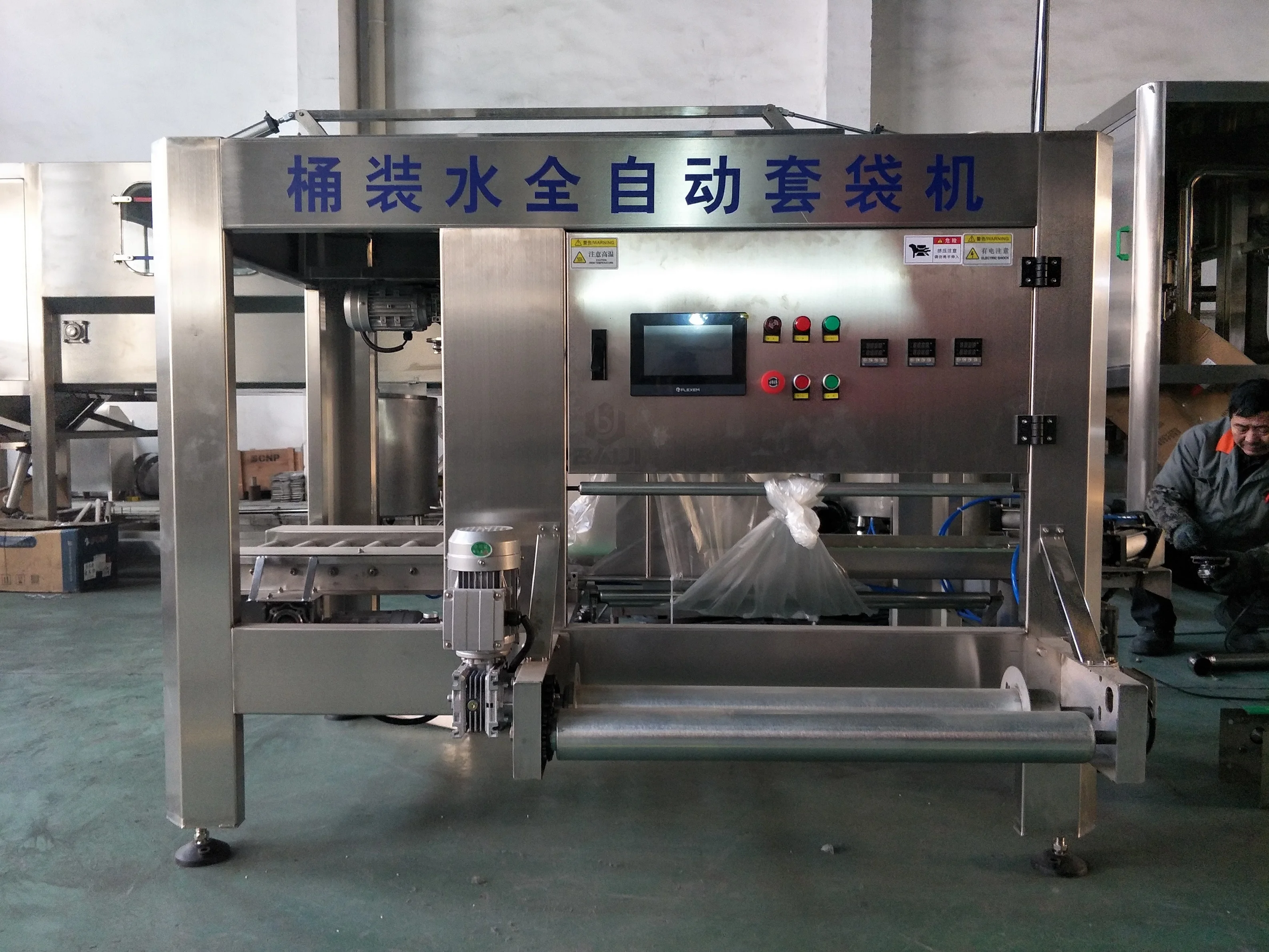

Automatic bagging machine
